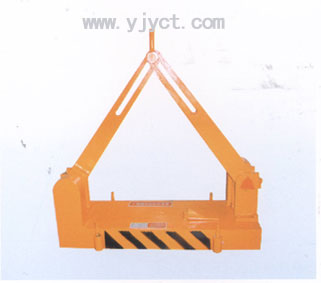

YC2-X/B series lifting permanent-magnet
(lengthened type)
YC2-X/B series lifting permanent-magnet Product is one of the special product in automatic series, It designed by a special mag-netic circuit, Relatively, It is more narrow than the conventional type in structure.
1) The suction area is larger, and the stability is increased.
2) By using driving hook lift up and down, To complete produce and degaussing magnetic cycle, and to achieve the purpose of adsorption and unloading.
3) Highly energy efficient, no power consumption
4) Combined use to lifting and transport widened plates.

Most suitable for lifting and transport large or small plates which are middle or thin in thickness, widened plates and profile.

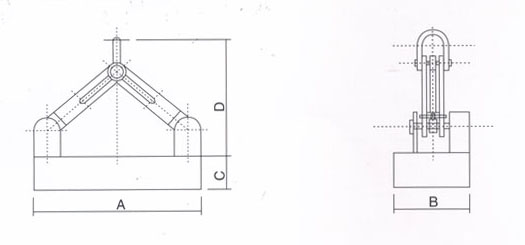

YC2-X/B series products' structure diagram
YC2-X/B series Technical Data Sheet
Model A(mm) B(mm) C(mm) D(mm) Mass(kg) Pull-off strength(kg) Rated lifting(kg)
YC2-1.5/B 950 380 120 1060 210 ≥6000 1500
YC2-2/B 1100 380 120 1150 252 ≥8000 2000
