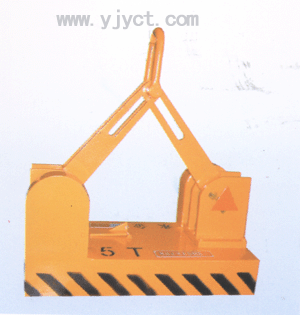

YC2-X/F series lifting permanent magnet
(Magnetic deep penetration type)

YC2-X / F series lifting permanent-magnet Product is one of the special product in automatic series, It is our company's patent, The patent is"Double magnetic circuit lifting permanent magnet", patent No.ZL200420035640.8,It using a special double magnetic circuit work principle, The structure is more compact than the conventional type.
1) Magnetic penetration depth, higher security
2) By using driving hook lift up and down, To complete produce and degaussing magnetic cycle, and to achieve the purpose of adsorption and unloading.
3) Highly energy efficient, no power consumption
4) Not only can be used seperated but also combined.

Most suitable for lifting and transport large or small plates which are middle or thick in thickness, billet steel, rail.

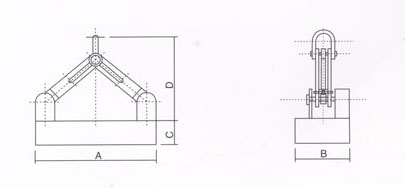

YC2-X/F series products' structure diagram

YC2-X/F series Technical Data Sheet
Model A(mm) B(mm) C(mm) D(mm) Mass(kg) Pull-off strength(kg) Rated lifting(kg)
YC2-1/F 700 300 130 780 180 ≥4000 1000
YC2-2/F 750 380 170 830 260 ≥8000 2000
YC2-3/F 750 450 170 830 350 ≥12000 3000
YC2-5/F 1000 520 175 1100 625 ≥20000 5000
YC2-10/F 1000 600 255 857 1480 ≥40000 10000
YC2-12/F 1000 650 255 857 1480 ≥48000 12000
YC2-20/F 1625 1040 320 1650 3600 ≥80000 20000
YC2-30/F 1950 1060 310 1890 3730 ≥120000 30000
